10RPM 12V Centre Shaft DC Motor With Metal Gears, Best DIY Motor

This is 10 RPM slow speed DC 12volt gear motor. These motors are simple DC Motors featuring Metal gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gear box assembly. This DC Motor 10RPM 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly. Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels.


Purchase Link -


Motor -

https://www.myinnovation.in/product-page/12v-dc-10-rpm-centre-shaft-multipurpose-gear-motor-powerful-metalic-gears

Suitable Adapter -

https://www.myinnovation.in/product-page/12v-2a-adapter

Suitable Battery -

https://www.myinnovation.in/product-page/12v-7-8-ah-lithium-ion-battery-pack

Suitable Battery Charger -

https://www.myinnovation.in/product-page/12v-lithium-ion-battery-charger


You need to use 12volt 2amps adapter or 12v 7ah battery to operate this motor. You can also control the speed of motor by using a 5A speed controller PWM and you can do reverse the rotation by using a DPDT 6pin switch system.

Special Features :

  1. It comes with Good Quality all Metal Gears.

  2. The metal gears have better wear and tear properties.

  3. Gearbox is sealed and lubricated with grease and requires no maintenance.

  4. Although motor gives 10 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.

  5. The shaft has a hole for better coupling.

Specification -


Operating Voltage

DC 12volt

RPM

10

Max Load current

300ma

No Load Current

30ma

Shaft Dia

6mm

weight

80gm

Shaft Length

26mm

Motor Length

80mm

Motor Dia

32mm

Gear Box Dia

39mm

Torque`

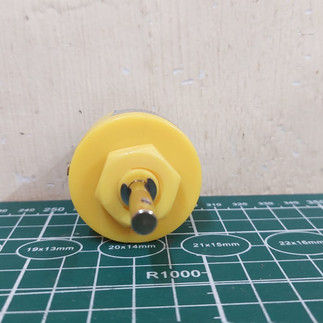

More Detail Pics -

Thanks .
