Powerful Table Saw Machine with 24v 775 Bearing Motor 240 watts

Here you get full guide for how to make a Powerful Table Saw Machine with 24v 775 Bearing Motor 240 watts. Now the things you need to make it -

  1. plywood for base (10 mm thick) - 30x40 cm

  2. plywood of support - 35x10 cm 2pcs, 22x10 cm 2pcs

  3. DC 775 bearing Motor 24v (purchase link -https://www.myinnovation.in/product-page/775-bearing-dc-motor-12-24v)

  4. Power supply 24v 10A SMPS ( purchase ink -https://www.myinnovation.in/product-page/24v-10amps-240-watts-smps-for-cutting-grinding-775-795)

  5. Speed controller 10A rated (purchase link - https://www.myinnovation.in/product-page/12-40v-10-amps-775-795-motor-speed-controller)

  6. Wood cutting blade ( purchase link- https://www.myinnovation.in/product-page/110-mm-cutting-blade)

  7. AC plug and 1 mm thick wire

  8. Solder iron and wires (purchase link - https://www.myinnovation.in/product-page/solder-iron)

Full video tutorial -

Now here is the connection Diagram -

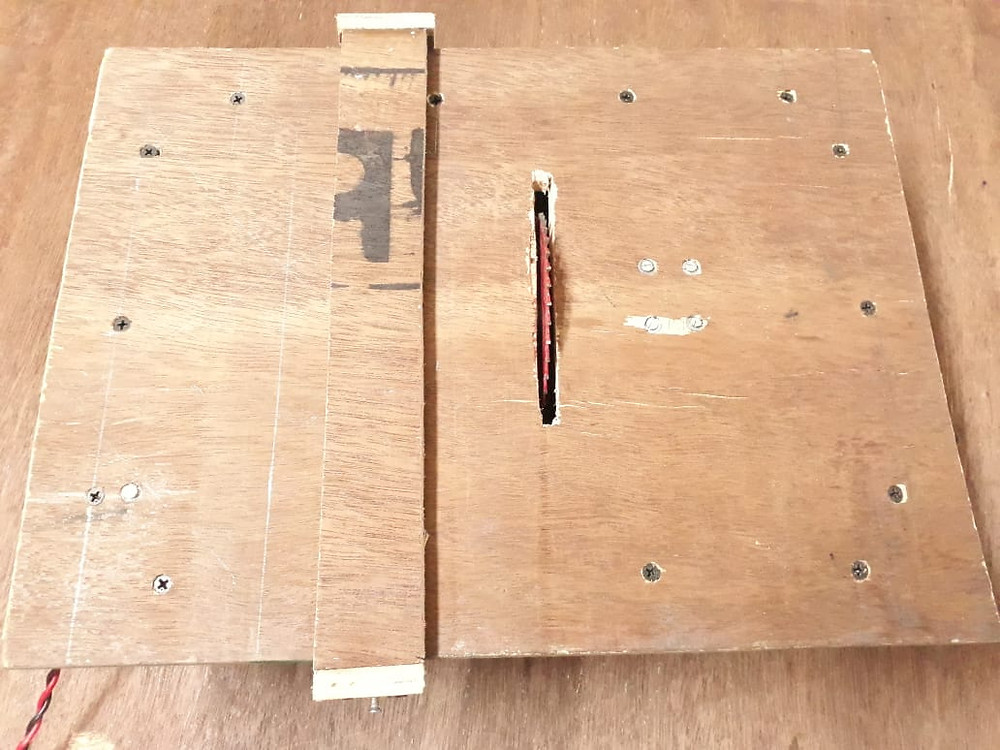

Some Pics of the Table Saw Machine -

I use 4 screw on each of two long side and 3 screw on each of other sides.

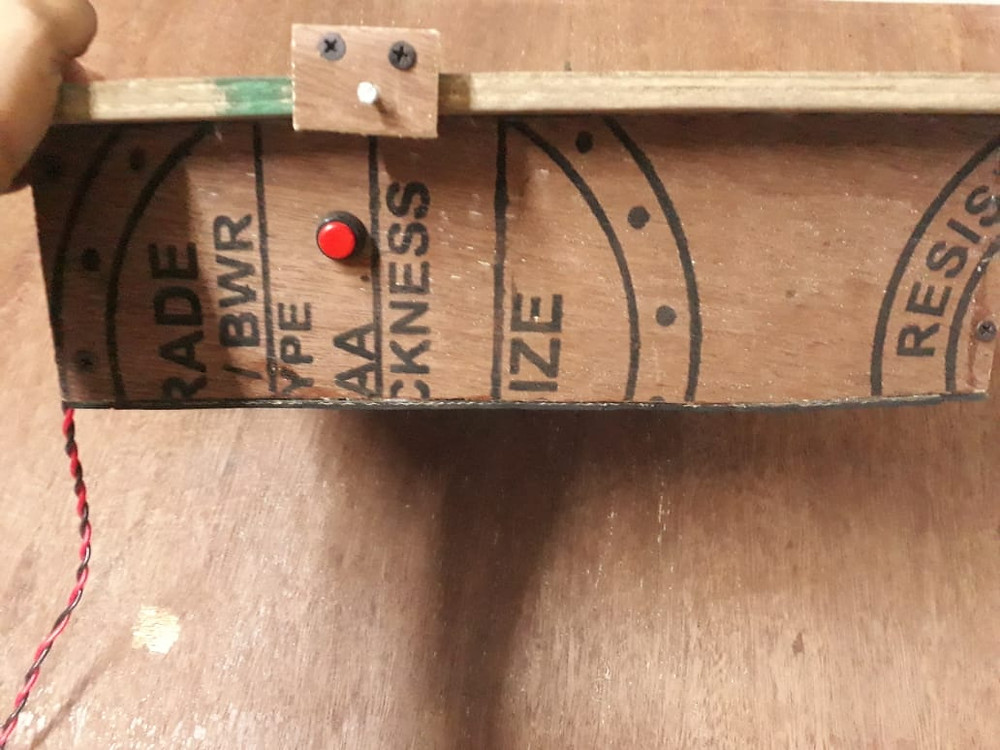

On/off switch. Make sure this switch should be 10A rated.

Speed controller Knob.

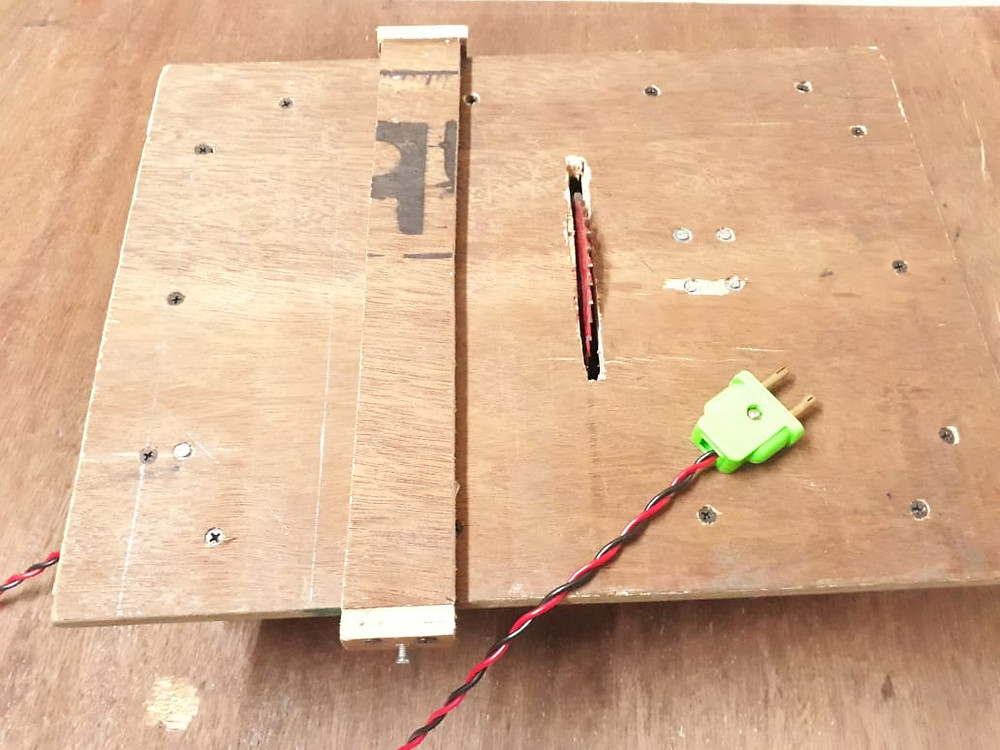

AC plug

Thanks for visiting this Blog. for any query comment us..
