60volt Best Lithium Iron Phosphate Battery BMS, 19s 30amps 1.8KW LFP Battery BMS Unbox Review

This is a 19S 60V 30A Lithium Iron Phosphate Battery(LFP) Protection Board. You can use this bms in you motor up to 1.8KW power. That's mean if you motor peak power is below 1.8KW or 1800watts then you can use this BMS easily in your battery pack. Next if you make 36ah or even 42Ah battery pack, then also you can use this BMS in your battery pack. As bms depends upon the power not the AH value.

It uses an A-level protective integrated circuit IC. Its high load capabilities and 30A continuous discharge current performance make it a reliable solution for battery packs. It features a power Mosfet with a high voltage resistance and a low inner resistance. The heat sink will significantly aid cooling.

IC itself has a power balancing function though the circuit is simple and reliable. It features typical voltage detection for each cell. So, that each battery will be prevented from overcharging or over-discharge conditions. This BMS has reliable Over current and short circuit protection function due to which long time short circuit of the load won't affect the PCB and the battery.

Continuous temperature monitoring through NTC and thermal protection during charging and discharging.

Extremely low power consumption and the current consumption of the whole device is less than 100uA.

This BMS uses a high anti-corrosion, high water resistance, and high impedance ESD conformal coating.

BMS Purchase Link -

https://www.myinnovation.in/product-page/60v-19s-30amps-lifepo4-bms-module-with-water-proof-temperature-sensor-i

Special Features-

  • Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.

  • Strong load ability, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.

  • IC itself has power balancing function. The circuit is simple and reliable.

  • Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged.

  • Over current and short circuit protection function is very reliable.

  • Long time short circuit of the load won’t affect the PCB and the battery.

  • Temperature protection during charging and discharging.

  • Extreme low power consumption. The consumption of the whole device is less than 50uA.

  • PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating



BMS Specification -

Battery Type

Lithium Iron Phosphate (LiFePO4)

Company Name

Daly

Max. Continuous Discharge Current​

30A

Over Current Protection Current

100A

Charge Voltage

69v

Max. Charge Current

15A

Balance Current

30±5mA

Battery Balancing Power

30±5mA

Balance Detect Voltage

3.5V

Working Current

100µA

Overcharge Detect Voltage

3.75±0.05V

Overcharge Release Voltage

3.55±0.05V

Over-discharge detection Voltage

2.2±0.1

Over-Discharge Release Voltage

2.7±0.1

Cable Size

12AWG

Working temp

~30 to 80C

Self-consumption

<10 uA

Purchase From

BMS Dimension -

128x64x12 mm

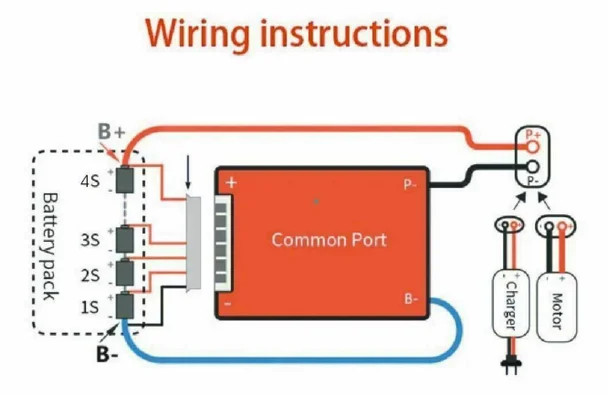

BMS Connection -


Thanks.
